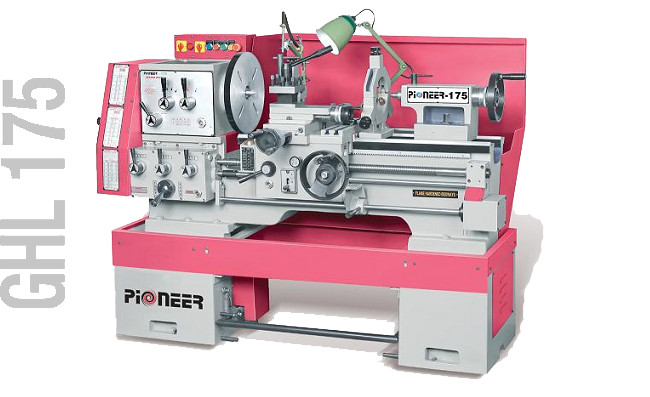

ALL GEARED
LATHE MACHINE
| SPECIFICATIONS | PIONEER GHL-175 |
|---|---|
| Height of Centre (mm) | 175 |
| Swing Over Bed (mm) | 350 |
| Swing Over Cross Slide (mm) | 176 |
| Distance Between Center (mm) | 750/1000 |
| Max. Swing in Gap (mm) | 620 |
| BED | |
| Bed Type | 2 V and 2 Flat |
| Bed Width (mm) | 280 |
| Length of Gap in Front of Face Plate (mm) | 160 |
| HEAD STOCK | |
| Number of Spindle Speeds | 8 (std.) 16 (optnl.) |
| Spindle Speed Range : R.P.M. | 54-1200 (std.) 54-1700 (optnl.) |
| Type and Size of Spindle Nose | Cam Lock, size D1-4 |
| Spindle Bore (mm) | 40 mm |
| Spindle Taper Number | MT - 5 |
| Diameter of Front Bearing | OD 110 x ID 60 |
| FEEDS AND THREADS | |
| Number of Feeds | 72 |
| Range of longitudinal Feeds (mm/Rev) | 0.033 to 0.739 |
| Range of Cross Feeds (mm/rev) | 0.021 to 0.458 |
| Number of Threads | 104 |
| Range of Metric Threads/No. | 0.2 to 7mm (32) |
| Range of Inch Threads/No. | 72 to 4 TPI (36) |
| Range of Module Threads/No. | 0.4 to 3 Module (15) |
| Range of D.P. Threads/No. | 44 to 8 D.P. (21) |
| Lead Screw Dia (mm) | 31.75 |
| Lead Screw Pitch (mm) | 6 mm |
| SADDLE | |
| Cross Slide Dimension (mm) | 178 x 415 |
| Cross Slide Travel (mm) | 225 |
| Tool Shank Section (mm) | 22 x 22 |
| Saddle Traverse (mm) | 640/890 |
| Compound Slide Traverse (mm) | 130 |
| TAIL STOCK | |
| Spindle Dia (mm) | 50.8 |
| Spindle Taper Number | MT-3 |
| Spindle Travel | 175 |
| Lateral Move to Tail Stock (mm) | 5 |
| MOTOR | |
| Main Motor (Kw.) | 1.5 (2 H.P.) |
| MODEL | FLOOR SPACE (APPROX.) | WEIGHT KGS. (APPROX.) | CASE DIMENSIONS | |||
|---|---|---|---|---|---|---|
| NET | GROSS | L | W | H | ||
| GHL-1 | 2300 x 1000 mm | 1000 | 1200 | 2500 | 1100 | 1600 |
| GHL-2 | 2600 x 1000 mm | 1200 | 1400 | 2800 | 1100 | 1600 |
STANDARD ACESSORIES:
Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electric Motor with Electrical Controls, Thread Dial Indicator, Camlock operating Handle, Chip Tray, Oil Gun, Tool kit, Manual Book.
Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electric Motor with Electrical Controls, Thread Dial Indicator, Camlock operating Handle, Chip Tray, Oil Gun, Tool kit, Manual Book.
EXTRA ACCESSORIES:
Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electric Motor with Electrical Controls, Thread Dial Indicator, Camlock operating Handle, Chip Tray, Oil Gun, Tool kit, Manual Book.
Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electric Motor with Electrical Controls, Thread Dial Indicator, Camlock operating Handle, Chip Tray, Oil Gun, Tool kit, Manual Book.
Note:
(1) All The above specifications are approximate and subject to change without prior notice as improvements are made from time to time.
(2) The Description ” standard accessories / salient features ” confirms to its list not the photo of models shown in the catalogue and subject to change without prior notice as improvements are made from time to time.
